Trailer Brakes: Electric, Mechanical & Hydraulic Basics

Trailer brakes aren’t just a nice-to-have—they’re safety-critical. They dictate how stable your trailer is, how much weight it can handle, and how reliable it is day in and day out. The three most common setups are electric, mechanical hand, and hydraulic drum brakes, and each has its own sweet spot. Here’s a no-fuss breakdown to help you choose the right one.

We’ve been deep in trailer brakes for years—designing, building, and supplying setups that actually hold up in real use. We make all key parts ourselves—base plates, brake shoes, you name it—so we control quality from start to finish. Just tell us your load size, trailer type, or local regulations, and we’ll tailor a system that’s tough, reliable, and won’t drain your budget.

How Each Brake Works

All brakes slow the trailer with friction, but they get the job done differently:

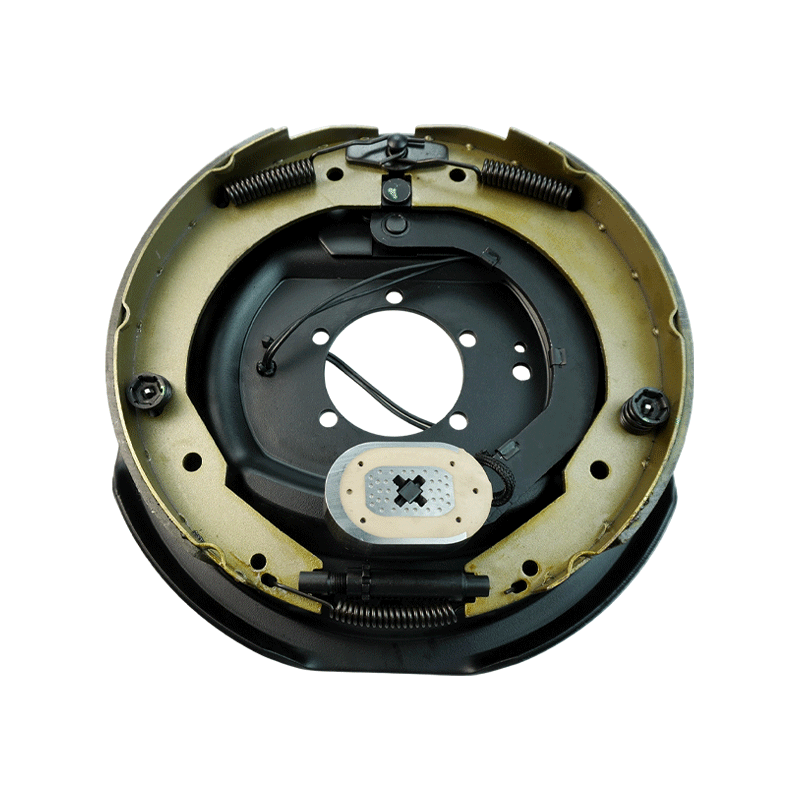

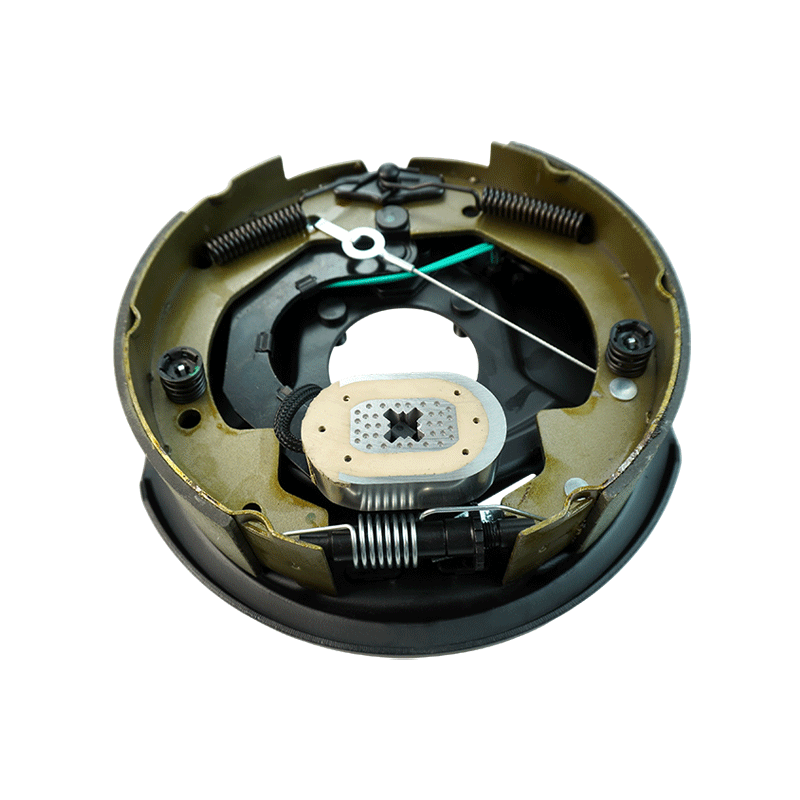

Electric Brakes

Press the tow vehicle’s brake pedal—this sends an electric signal to a coil on the trailer. The coil makes a magnet that pulls a part (armature), which pushes brake shoes against the drum to slow things down. Let go of the pedal, power cuts off, and a spring pulls the shoes back. Nice ones adjust the magnet strength for different loads.

Mechanical Hand Brakes

Pull the hand lever—this uses cables and levers to turn a cam, which spreads the brake shoes against the drum. Let go, cables retract, and a spring resets. It all depends on how hard you pull—no extra power—so it’s only for parking or emergencies.

Hydraulic Drum Brakes

Step on the pedal—this pushes fluid in the master cylinder to wheel cylinders. The fluid pressure shoves the brake shoes against the drum. Let off the pedal, fluid flows back, and shoes reset. Most have a booster so you don’t have to press the pedal hard, even with heavy loads.

Key Differences Between Them

These differences change how they perform, what they’re good for, and how you use them:

Power Source: Electric uses magnets (no wear on parts). Mechanical uses your hand (cables wear out). Hydraulic uses fluid (check for leaks sometimes).

• Electric: Electromagnetic force (signal-driven, so no wear on transmission components)
• Mechanical Hand: Manual force (lever-cable linkage, tends to wear out over time)
• Hydraulic: Fluid pressure (sealed system, needs occasional leak checks)

Control: Electric adjusts smoothly with load. Mechanical is just “on/off”—no tweaks. Hydraulic adjusts with pressure but lags a bit, so heavy loads might brake unevenly.

• Electric: Linear control via signal strength—adjusts smoothly as loads shift
• Hydraulic: Pressure-adjustable, but with slight lag—can brake unevenly under heavy loads

Response Speed: Electric is fastest (0.1–0.3 seconds)—great for highway emergencies. Hydraulic lags a bit (0.3–0.5 seconds), worse with heavy loads. Mechanical slows over time as cables stretch—check them regularly.

• Electric: Respond the fastest (0.1–0.3 seconds)—great for high-speed emergencies
• Hydraulic: Slight lag (0.3–0.5 seconds)—gets worse with heavy loads
• Mechanical Hand: Slow over time (cables stretch)—needs regular checks

Load & Uses: Electric handles 1–10 tons (logistics, long hauls, small construction). Mechanical is for under 3 tons—only parking/emergencies. Hydraulic does 5–20 tons (heavy trucks, short-haul heavy loads).

• Electric: 1–10 tons—ideal for logistics, small engineering trailers, long hauls
• Hydraulic: 5–20 tons—built for heavy trucks, short-haul heavy loads

Best Uses for Each Brake

Pick based on what you’re hauling and how you use the trailer:

Electric Brakes: Best for light to medium loads (1–10 tons). They adjust well, stop fast (shorter distance on highways), and last 5–8 years with little upkeep. Easy to hook up to most tow vehicles.

Mechanical Hand Brakes: Your backup plan. Simple design works in dust or rain when other brakes might fail. If main brakes go out, it stops the trailer from rolling. Cheap to install and use—just pull the lever.

Hydraulic Drum Brakes: The heavy lifter (5–20 tons). More stopping power than electric for big loads. Stops smoothly (no jolts), cools well so it doesn’t fade during frequent stops. Booster makes the pedal easy to press.

Quick Pick Guide

Here’s the quick guide: Light/medium loads or long hauls? Electric. Heavy loads? Hydraulic. Always add a mechanical hand brake for backup. Many trailers mix electric + mechanical for safety and ease.
