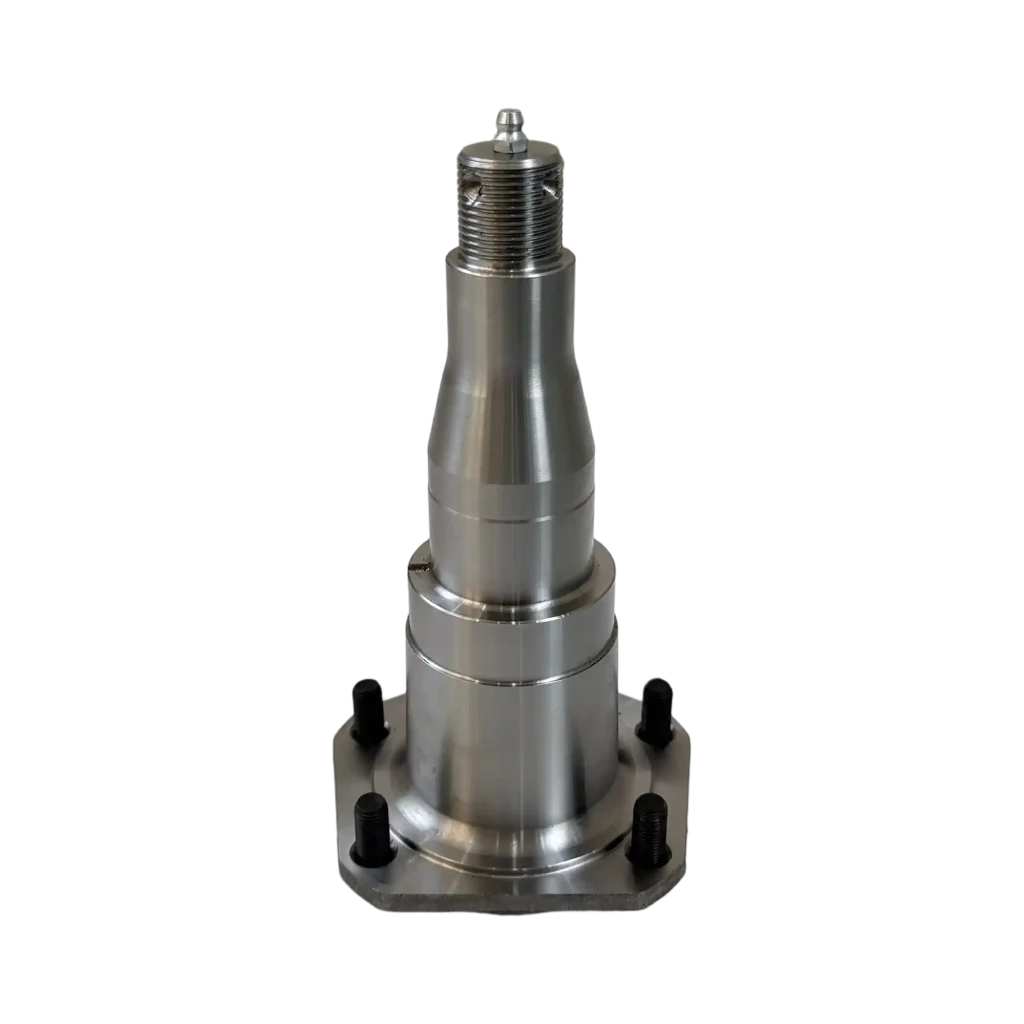

trailer axle spindle: Installation & Use Guide

Finding well-fitting axle heads—whether for repairing worn axles (replacement) or manufacturing new axles (custom builds)—can be a hassle. Off-the-shelf parts rarely meet specific brake or dimension needs. Our precision axle heads solve this: built tough for heavy use, and flexible for both repair and manufacturing setups.

Axle Heads: Precision & Performance

Welded to both ends of axle tubes, axle heads secure hubs, bearings, and brakes—they’re the wheel assembly’s backbone. All load passes through them, so strength and precision are critical.

We use special-grade steel with high toughness for long-lasting durability. CNC-machined to ±0.005-inch tolerance—this directly ensures perfect spindle centering and a seamless fit with bearings. Even 0.01-inch misalignment causes bearing wear, uneven tires, and highway wobble.

Precision = reliability. Flat, smooth mating surfaces weld tightly (no moisture traps). 3D measuring verifies specs—so bearings fit perfectly with the axle head, hubs slide on easy, and bearings spin free without friction.

We offer two core axle head designs to match your needs: idle (no-brake) heads for basic setups, and brake-ready heads that fit electric, mechanical disc, or drum brake systems seamlessly. Whether building new or replacing worn heads, our precision-machined axle heads eliminate guesswork and keep your rig running straight.

Our Axle Head Configurations

• Idler Drum Axle Heads: For unpowered axles (utility, cargo, boat). Rust/warp-resistant cast iron.
• Electric Brake Axle Heads: For RVs, horse, medium freight trailers. Syncs with tow vehicle.
• Disc Brake Axle Heads: For heavy loads/rough terrain. Better heat resistance than drums.

Customization

Our biggest advantage? We center our customization around your needs—send us your 2D or 3D drawings, and we’ll craft one-of-a-kind, exclusive axle heads tailored to your exact specs. Whether it’s unique dimensions, special mounting points, or custom spindle configurations for your specific trailer, we build it to match your blueprint perfectly. If you can draw it, we’ll make it—no “close enough” off-the-shelf parts, just a product that’s yours alone.

Installation & Maintenance

Installation is straightforward. Key steps and maintenance tips below:

Two Installation Scenarios (Repair & Axle Manufacturing)

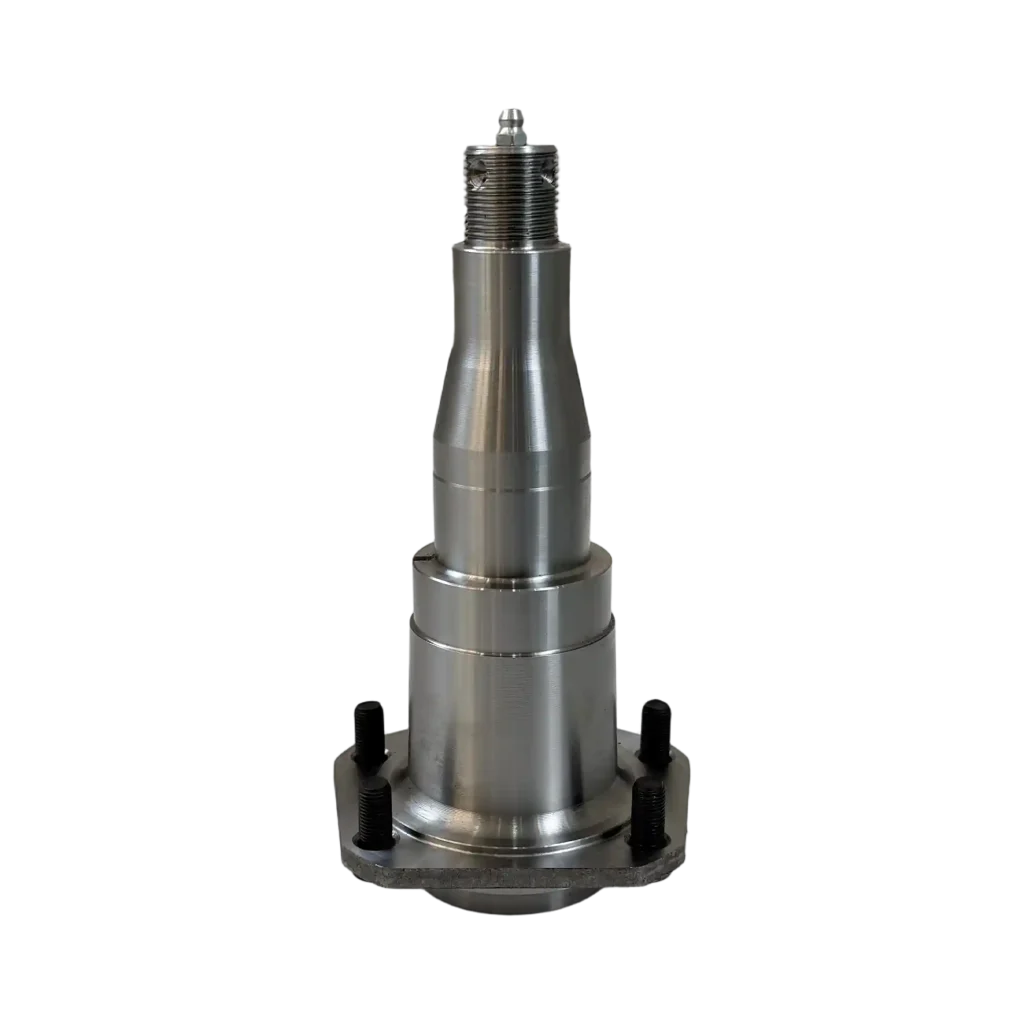

1. Replacing a Worn Stub Axle

Tools: Jack stands (never just a jack), torque wrench, socket set, wire brush, matching grease. Safety: Jack trailer, secure stands, remove wheel.

• Remove wheel, then brake assembly (disconnect/tuck electric brake wiring).
• Remove old hub/spindle. Scrub axle tube (rust/debris ruins alignment).

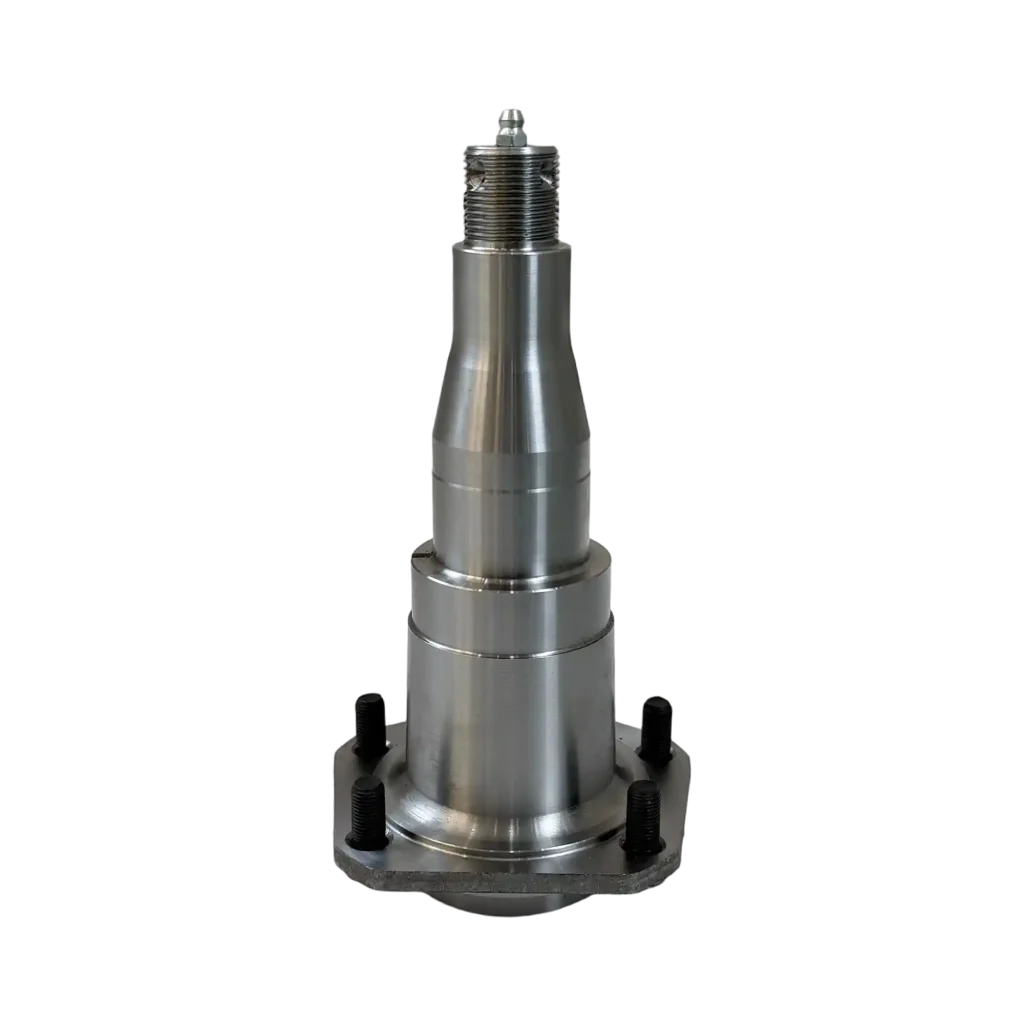

• Slide in new axle head. Bolt-on types: Crisscross tighten to 120-150 ft-lbs (follow specs).
• Grease hub, reinstall brakes/wheel. Torque lugs (avoid over/under-tightening).

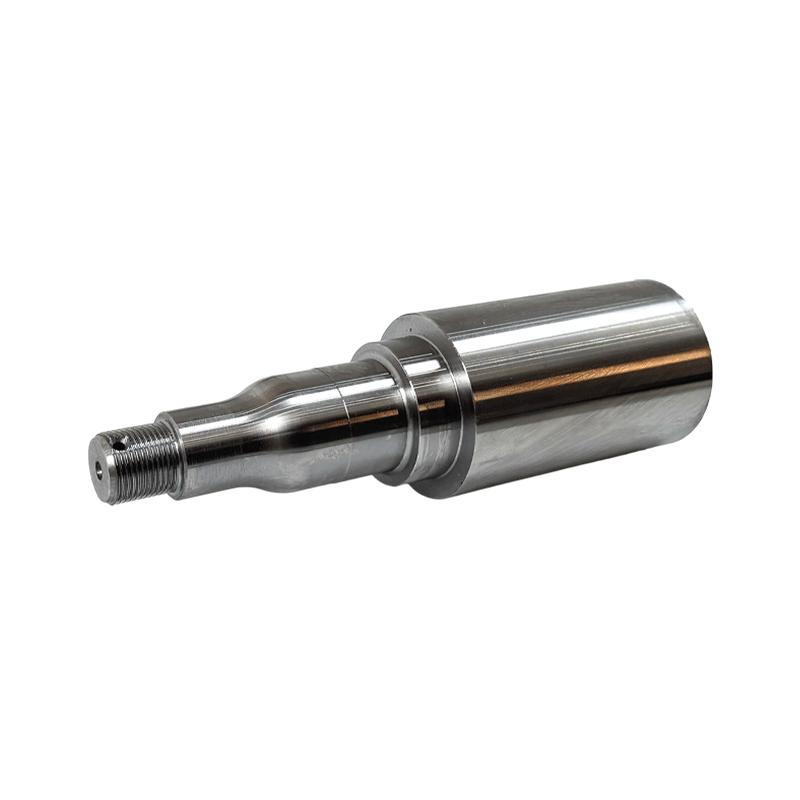

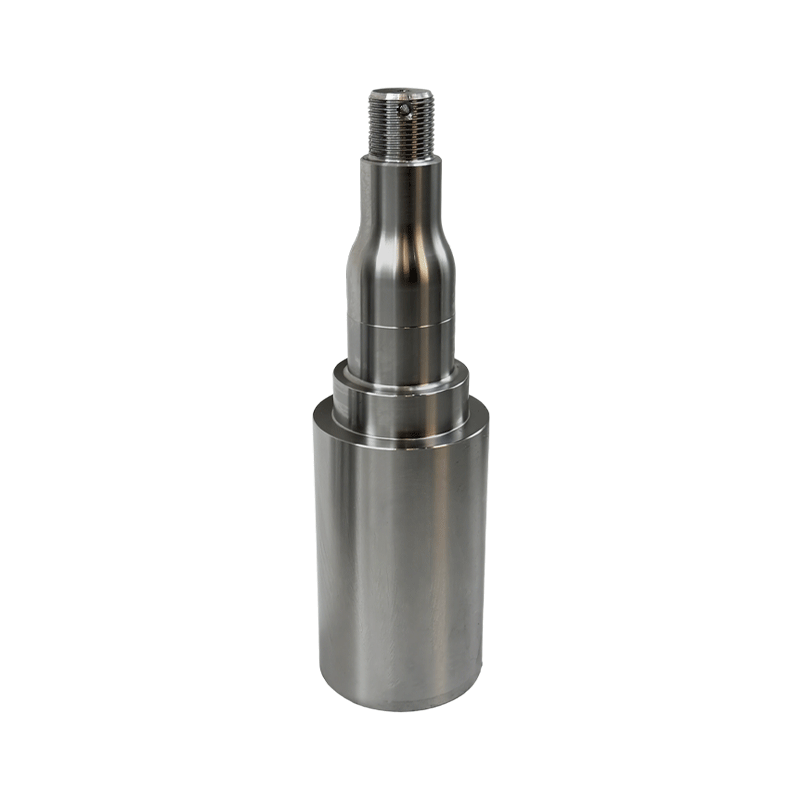

2. New Build: Welding to Axle Tube

Welding tip: Keep tube straight; grind weld area (clean metal bonds better).

• Slide axle head tail into tube (pre-cut to your specs for perfect fit).
• Clamp centered. Level with frame (misalignment = uneven wear/drag).
• Weld 1-inch segments (alternate sides to avoid warping). Cool fully.
• Grease and mount brakes/wheel (follow replacement steps).

Post-Install Checks

Post-install checks: Spin hub (smooth = good). Test brakes. Check for leaks after 10 miles (steady drips = replace seal).

Everyday Use & Maintenance

Extend life with regular checks:

• Pre-Trip: Wiggle wheel (no play = tight bearings). Test brakes. Check leaks/worn pads.
• Lubrication: Grease bearings every 10k miles/6 months (same type). Top off oil hubs monthly.
• Heavy-Duty Use: Check bearings/brakes every 5k miles (salt/mud/
• Annual Check: Inspect bearings for pitting/rust. Replace seals every time you open the hub (blocks moisture).

Get Your Axle Heads

Our axle heads fit your rig and last—whether for repairing worn axles, manufacturing new axles, or custom builds. Send us your specs or blueprint. We’ll quote fast and ship promptly. Get axle heads made for your trailer repair or manufacturing needs.
